  1. Instruments

OpulenZ

PreviousNEScalineNextOrganic

Was this helpful?

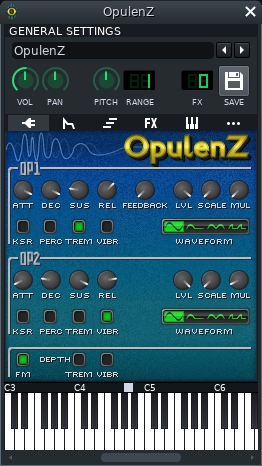

OpulenZ is an emulation of the Yamaha YM3812, a.k.a. OPL2, FM synth chip which was used i sound cards around 1990 - the Adlib and Sound Blasters. It generates sound through frequency modulation or adding 2 oscillators.

Operators

The two oscillators are called operators. In FM mode (bottom left), operator 1 modulates operator 2. Otherwise both operators are routed to the output.

Controls

For each operator, the controls are:

  • ATT, DEC, SUS, REL: an ADSR envelope

  • KSR: keyboard scaling rate. When KSR is on, envelopes get faster when the pitch rises.

  • PERC: percussive envelope. Makes the envelope go straight to release ignoring held keys.

  • TREM: applies tremolo (slight amplitude modulation) to the operator

  • VIB: applies vibrato (slight pitch modulation) to the operator

  • FEEDBACK: only for operator 1 - feeds a portion of the operator's output back into ir

  • LVL: the output level of the operator

  • SCALE: determines the scaling applied to the output level when the pitch rises

  • MUL: the frequency multiplier for the operator. 1 stands for the standard pitch played on the keyboard, 0 is one octave below.

  • WAVEFORM: selection from 4 waveforms: sine, half sine, absolute sine and quarter sine. NB: a DC removal plugin might be a good idea when routing waveforms other than sine to the output.

Global Controls

  • FM: when this is on, frequency modulation is used. Otherwise the operators are mixed together.

  • DEPTH, TREM and VIBR: these select deeper tremolo and vibrato. Applies to both operators.

Useful Resources

Getting started with FM:

Programming the AdLib/Sound Blaster FM Music Chips: (some of the controls are presented inverted in LMMS, to fit better with other symbols)

http://www.gorenfeld.net/lou/fmguide.html
http://www.shipbrook.net/jeff/sb.html
